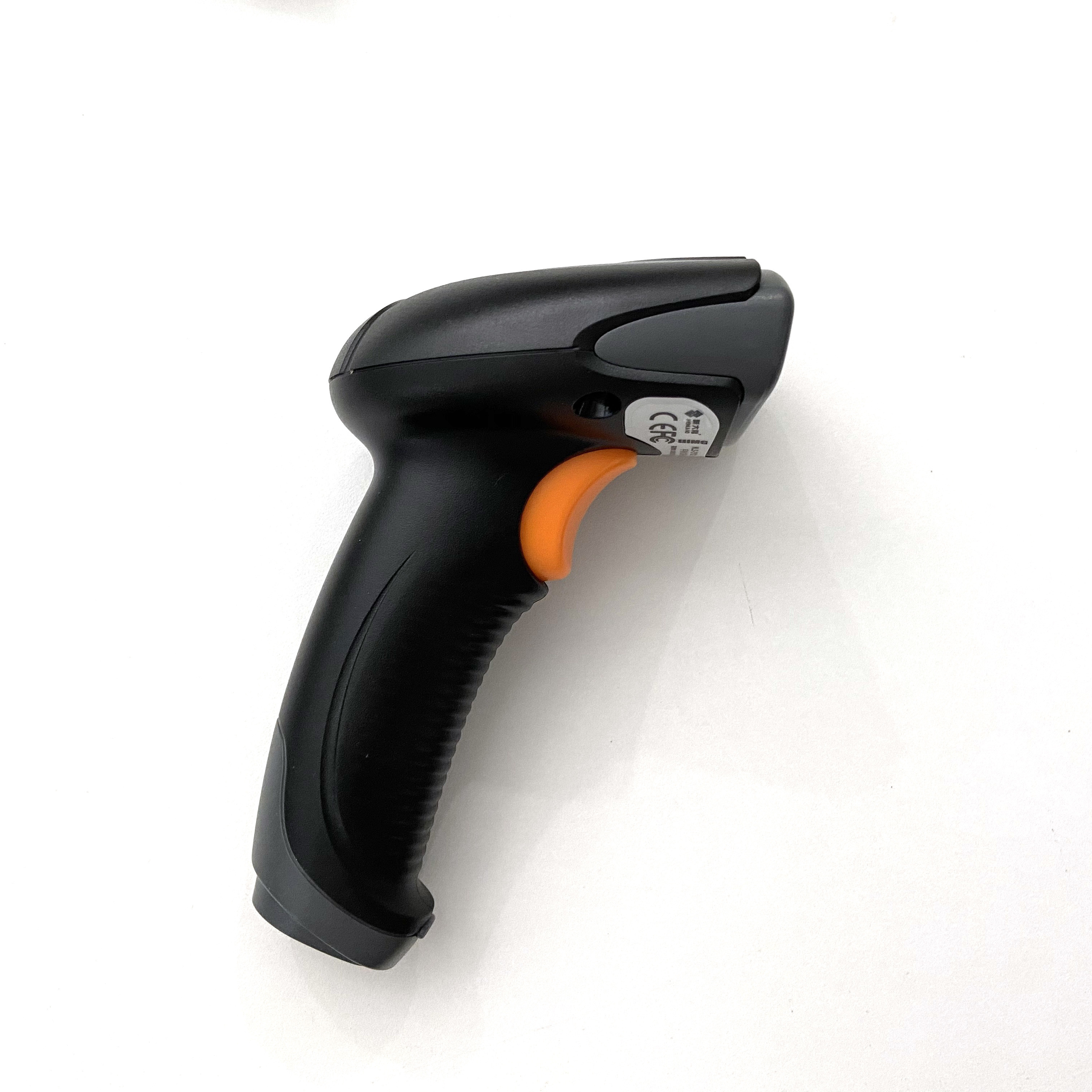

Barway Wired Handheld 1D 2D Barcode Scanner NLS-0Y20 For Warehouse
Feature
- Wireless + Wired USB dual mode.
- Ergonomic design, comfortable to hold.
- Plug and play, work with all POS system.
- Support multi-languages and adding prefix/suffix.
- Excellent decoding ability, fast to scan 1D/2D barcodes on
paper/screen.
- Can store 100,000 barcode in offline storage mode, very convenient
to use.
- Compatible for Mac/Android/Linux/Windows system, drive free, plug &
play.
- Application fields:Supermarket, Retail, Warehouse,Logistic,Library,
Medical etc.
- Quickly and accurately identify 1D code and 2D code.
- Green low power consumption.
- Rich application scenarios.
- Ergonomic design.
- Stable, precise, convenient, practical, and efficient.
- Compatible with multiple systems.
Speciafication
System Specifications | Image Sensor | 640*480CMOS | Illumination | White LED | | | | Aiming | Red LED (625nm) | | | | Symbologies | 1D PDF417, QR Code, Data Matrix | | | | 2D Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, RSS-14, ISBN/ISSN,
UPC-E, UPC-A,Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5, Industrial 25,
Standard 25, Code 39, Codabar, Code 93, Code 11,Plessey, MSI-Plessey,
RSS-Limited,RSS-Expand. | | | | Resolution* | ≥4mil | | | | Typical Depth of Field* | EAN-13 55mm-220mm (13mil) QR Code 35mm-110mm (15mil) | | | | Scan Angle** | Pitch ±45°
Roll 360°
Skew ±40° | | | | Field of View | Horizontal 45°, Vertical 34° | | | | Min. Symbol Contrast | 30% | | | |
Physical Specifications | Interfaces | RS-232, USB | Dimensions (LxWxH) | 145x101x68mm | | | | Weight | 115g | | | | Notification | Beep, LED indicator | | | | Operating Voltage | 5VDC±10% | | | | Rated Power Consumption | 0.31W (typical) | | | | Current @ 5VDC | Operating 62mA (typical), 115.5 mA (max.) | | | | Idle 33mA | | | |
Input/Output Ports | Operating Temperature | --20°C to 60°C | Storage Temperature | -40°C to 70°C | | | | Humidity | 5%-95% (non-condensing) | | | | ESD | ±15 KV (air discharge); ±8 KV (direct discharge) | | | | Drop | 1.2m | | | | Sealing | IP42 |
|
The prices above are only for your reference. Please contact us by
trademanager or email.We will be glad to quote an accurate price to
you according to your specific requirements.
