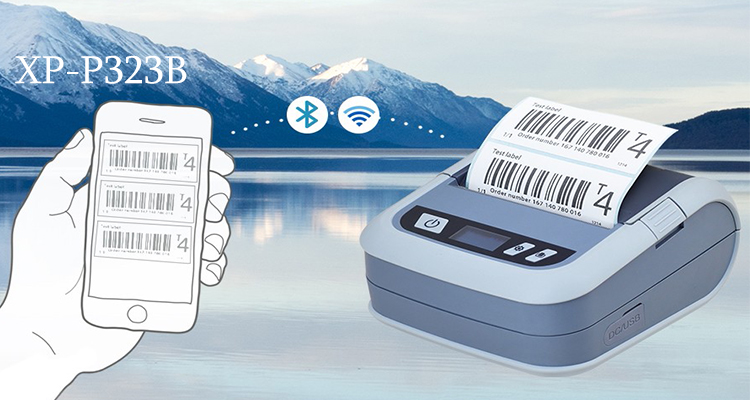

3inch/80mm Thermal Label Printer XP-P323B Thermal Printer

Specification

XP-P3302B / P323B Features:

Support USB interface for charging and printing (both front and back of USB can be plugged in) LCD display, easy to operate 2500mAh large-capacity battery, super long standby time MAX 70 mm/s low noise, high speed printing Support ESC/POS, TSPL, DPL, ZPL, CPCL, EPL and other instruction sets Large paper bin design, 50mm diameter paper roll

Printing	Print Method	Thermal Print
		Resolution	203 DPI
		Print Speed	70mm (2.7") / s
		Print Width	72mm (2.8")
		Print Length	1016mm (40")
		CPU	32-bit processor
Memory	Memory	8MB Flash Menmory/8MB SDRAM
Interface	Interface	USB2.0 (Standard) / WIFI(Optional)/ Blue-tooth(Standard)
Power	Power	Adapter Input: AC 100-240V,0.5A, 50-60Hz Output: DC 5V/2A Battery: 7.4V/2500mAh
User Interface	Operation switch, button	Standard model 3 physical buttons, OLED (0.96") display (128*64 resolution)
sensor	sensor	Gap Sensor/Open Cover Sensor/Black Mark Sensor
built-in font	built-in font	Eight kinds of bitmap fonts/Windows fonts available through software download
Barcode Character Graphics	Code	1D bar code:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST
		QR Code	2D bar code:PDF-417, Maxicode, DataMatrix, QR code
		Font and barcode rotation	0°,90°,180°,270°
printer language	printer language	TSPL,EPL,ZPL,DPL,CPCL,ESC/POS
Media	media type	Continuous paper, gap paper, black mark paper
		Media width	20 mm ~ 76 mm
		Media thickness	0.06 mm ~0.254 mm
Accessories	Accessories	Power cord (adapter); USB transmission cable
Factory selection	Factory selection	①WIFI
safety certificate	safety certificate	FCC,CE, CCC,CB
physical properties	Weight	0.357kg(含电池)
		Dimensions	124(D) x 108(W) x 61(H)mm
Environmental requirements	working environment	5 ~ 40°C (41~104°F), humidity (non-condensing) 25 ~ 85%
		storage environment	-40~60°C (-40~140°F), humidity (non-condensing) 10~90%
